M07 system carries I/O expansion capacity, low cost, and high performance.
M07 PLC board is a CPU-Peripheral one board. It carries high system efficiency and real time sequence program.
The display panel of M07 system uses 10.4" TFT (the resolution is 800*600) |
| |

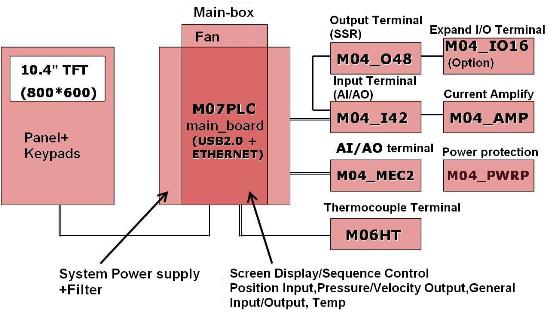

Block diagram
(click to zoom in)
 |
| |
| |
